Modern Dairy Farm Shed Design & Cost Guide

Cattle Sheds: Not Just A Roof Anymore

In the rising Indian dairy sector, the difference between a profitable farm and a struggling one is often the design of the cattle shed. Research shows that heat stress can reduce milk yield by up to 30%. A traditional, low-roof masonry shed acts like an oven, trapping heat and ammonia, leading to disease and lower productivity.

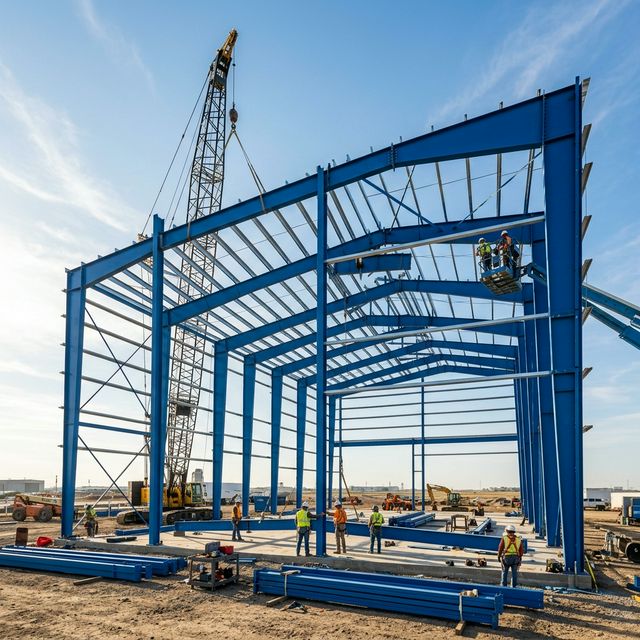

Modern **Pre-Engineered Building (PEB)** dairy sheds are specifically designed to manage **Cattle Comfort**, ensuring your livestock remains cool, dry, and stress-free throughout the Indian summer.

1. Crucial Ventilation & Height

For a dairy shed, "Air Flow" is the most critical engineering factor. High eave heights (at least 4.5 to 5 meters) allow for better natural air circulation.

• Open Sides: Instead of solid walls, modern sheds use open side portals with safety mesh or curtains for maximum cross-ventilation.
• Ridge Openings: A continuous opening at the peak of the roof allows hot air to escape naturally.
• Orientation: Ideally, the shed should be oriented East-West to minimize direct sun exposure on the cattle during the hottest parts of the day.

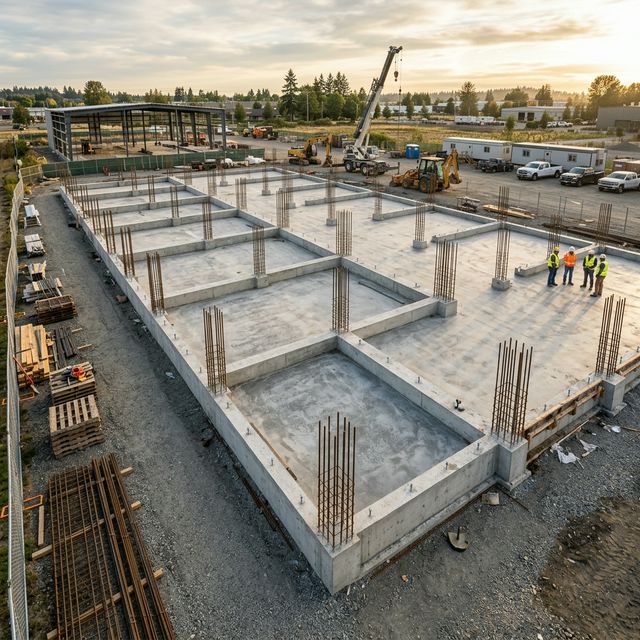

2. Specialized Flooring & Drainage

A wet floor is a playground for bacteria. Design guidelines for dairy flooring include:

• Non-slip Texture: The concrete must be grooved or finished with a non-slip material to prevent cattle injuries.
• 2-3% Slope: The floor must have a precise slope leading toward central or side drains for instant runoff of waste and water.
• Cubicle Design: Modern "Free Stall" designs provide each animal with a dedicated resting place, significantly reducing stress compared to old "Tied" systems.

3. Cost Breakdown for 2026

Costing for a dairy shed is slightly different from a standard industrial warehouse. You provide more for the floor and "skin" (ventilation) but less for wall cladding.

• Basic PEB Structure: ₹220 – ₹380 per sq ft.
• Civil & Specialized Drainage: ₹180 – ₹300 per sq ft.
• Cooling Systems (Fans/Foggers): Lump sum depending on livestock count (~₹5,000 – ₹10,000 per cow).

Note: While the upfront cost is higher than a brick shed, the **milking efficiency** and reduced veterinary bills typically pay back the difference in 18-24 months.
