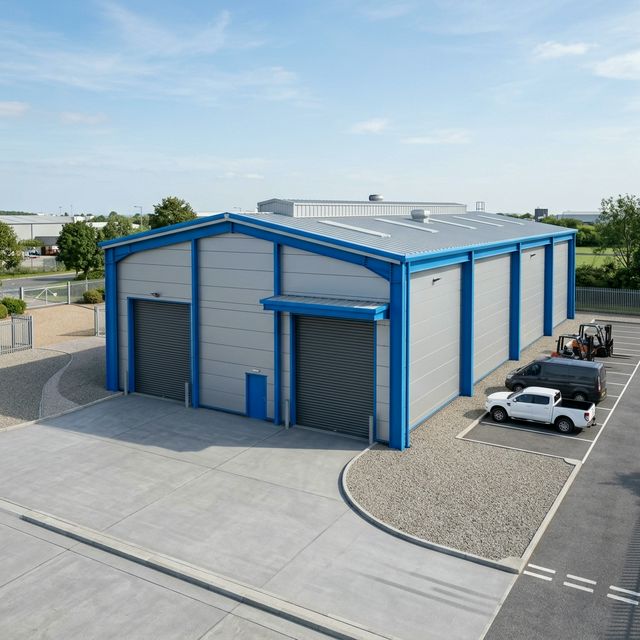

Cost of 100×50 Shed in India (2026 Guide)

The 5000 Sq Ft Sweet Spot

A 100×50 foot (roughly 5,000 square feet) shed is one of the most popular configurations for medium-scale factories, warehouse go-downs, and commercial showrooms in India. It is large enough to house production lines but small enough to manage within a reasonable budget.

However, asking for a single "final number" is risky. Two identical 5,000 sq ft sheds can vary in price by up to 30% depending on soil strength, the weight of the machines inside, and even the local wind speeds in your district.

1. The Structural Components (PEB Skeleton)

The main cost driver is the steel tonnage. For a 100x50 shed, the structure typically includes:

• Primary Members: Columns and rafters made from high-tensile steel.
• Secondary Members: Purlins (Z or C sections) that provide lateral support.
• Wind Bracings: Rod or angle bracings to ensure the building doesn't sway in storms.

Estimate Range: ₹250 – ₹450 per sq ft for the PEB supply and erection alone, assuming a standard height of 20-25 feet.

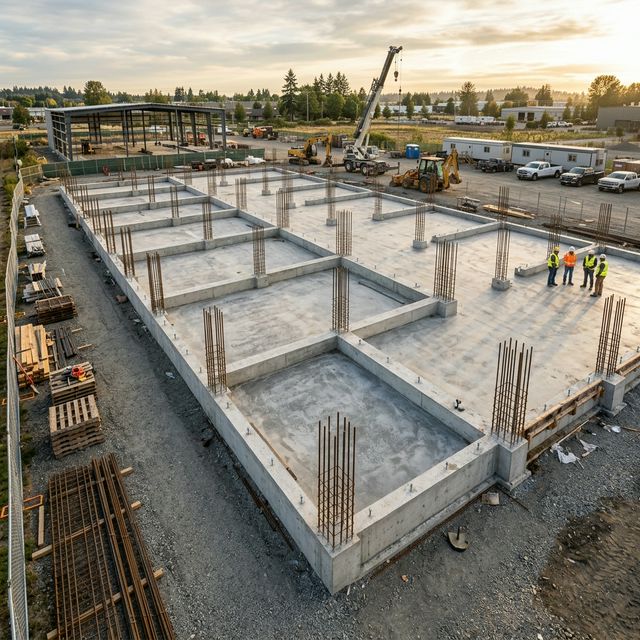

2. Civil & Foundation Work

Civil work covers everything below the ground. This is where most "cheap" quotes hide their extra costs. For a high-quality industrial facility, you need:

• Footings & Pedestals: Concrete blocks that hold the steel columns.
• Plinth Wall: A 1-2 meter brick or concrete wall at the bottom for safety and flood protection.
• Industrial Flooring: Usually 150mm thick M20 or M25 grade concrete with VDF (Vacuum Dewatered) finishing.

Estimate Range: ₹200 – ₹350 per sq ft, heavily dependent on your soil's Bearing Capacity (SBC).

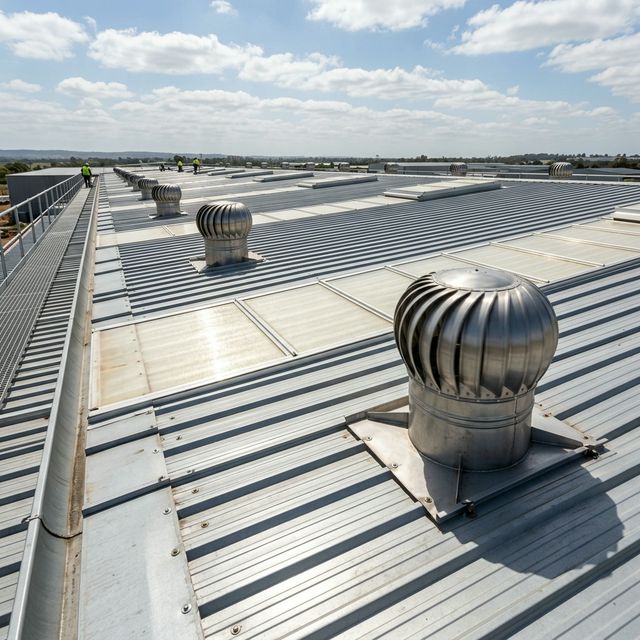

3. Roofing & Cladding

The "skin" of your building. You have two main choices:

• Single Skin (Galvalume): Simple 0.5mm profile sheets. Cost-effective but can get hot inside.
• Double Skin (Insulated): Two sheets with Glass-wool or PUF insulation in between. Vital for food storage or workspaces with employees.

Estimate Range: ₹100 – ₹250 per sq ft (coverage area).

4. The "Extras" (The Completion Kit)

A bare-bones shed is useless without functional extras. For a 100x50 project, budget for:

• Turbo Ventilators: Natural air exhaust (usually 10-15 units needed).
• Skylights: Polycarbonate sheets for natural daytime lighting (saves electricity).
• Gutters & Downspouts: To prevent water from pooling at your foundation.
• Rolling Shutters: Usually 1-2 large manual or motorized shutters.

Estimate Range: ₹50,000 – ₹2,50,000 (Total lump sum for 5000 sq ft).
